NEW! Samsung LH351H - 3.75 umols/J



(250)-793-5100 or inquire at Sales@OpticLEDGrowLights.ca

socialmediamanager@opticledgrowlights.com

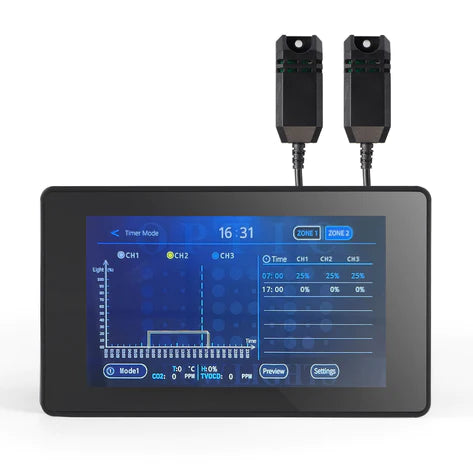

 *Compatible with the Optic LED Master Controller ($199.00)

- For Commercial Quantities email us for special pricing.

- CommercialGrower@OpticLEDGrowLights.com

Click the "Watch On Youtube" link to watch

Coverage Footprint:

Flower:                                           Veg:

4' x 4' area (1.2m x 1.2m)                4' x 4' area (Up to 7' x 7' area)

Max: 5' x 5' area (1.5m x 1.5m)

         (4' x 4' Grow Tent / 1.2m x 1.2m)

Hanging Height & Dimmer Settings :

Seedling: 48"+    / 25% Power

Vegetative: 48" + / 50% Power (or 24" @ 25% Power)

Flowering:

Wk1-3 - @24-30""     / 50% Power

Wk4-6 @18" - 24"  / 75% Power

Wk7-8 @18" - 24"  / 100% Power

Wk9-10 @12" - 18" / 100% Power

Pro Tips: It's always best to set the light up higher and let the plants grow up into the light.

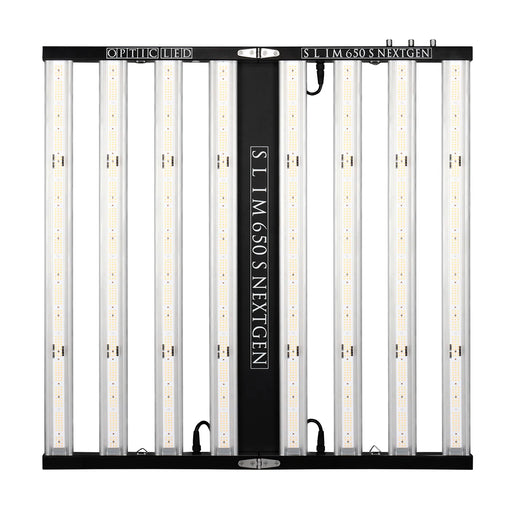

Slim 650S Components:

LEDs: 3,096 Total LEDs

3500k White LEDs:

- Top Bin Samsung LM301H LEDs  3000k & 4000k Mixed

Bloom Enhancers:

Deep RED LEDs: 64 pcs

- New to the market! Samsung LH351H V2 Deep Red LEDs - 3.75 umols/j

Blue LEDs: 32 pcs

- New to the market! Samsung LH351H Royal Blue

INFRARED LEDs: 4 pcs (Dim Red LED)

- Top Bin Samsung LH351H Infrared LEDs

Ultra Violet LEDs: 4 pcs (Dim Purple LED)

- LG UV LED - Proven Increased Resin Production and Potency of oils

Optics: 120 Degree Primary Lens on all LEDs

(No Secondary Optics on fixture)

Drivers: 3 Meanwell Dimmable Drivers 0%-100% (Industry Best)

Dimmers: 3 Independent Dimmers

Dimmer#1 (White LEDs Channel) - 500 watts

Dimmer#2 (RED Channel + UV & IR) - 100 watts

Dimmer#3 (Blue LEDs Channel) - 50 watts

Controller Tech: Fully Compatible - (*Touch Screen Controller is Sold Separately)

3 Way Dimmability - You can Control the 3 Dimmers Independently

Spectrum Control - 3 Way Spectrum Control, add more Red, White, or blue light independently or programmed in the timer mode.

Dual Port RJ-11 Controller hookup  - Daisy chain up to 20 lights

Thermal management: Passive Cooling from a significantly Overbuilt extruded Heat sink (Fanless Technology - No Moving Parts)

*Coolest Operating Temp of any High Power Bar Fixture on the market.

Spectrum:

Full Spectrum White Light 3500k (Mixed White Light LEDs) (Full Power on 3 dimmers)

+ 660nm Deep RED + 450nm Royal Blue + ultraviolet + 730nm Far Red

Dimmer#1 - Full Spectrum White Light LEDs only

Dimmer#2 - 660nm Deep RED + ultraviolet + 730nm Far Red

Dimmer#3  450nm Royal Blue

 (Powerful Spectrum Control leads to healthier plants with lower stress levels leading to higher overall production, yield, and flower quality)

PPF/w: 3.15 umols/J

Test in 4' x 4' Area: 1.2m x 1.2m = 1.44 Square Meters

PPFD Slim 650S:

(Tested with Apogee MQ-500 meter in 4x4 / 1.2m x 1.2m Tent @ 640w)

10" Hanging Height PPFD: 1,342  (3.01 umols/J)

18" Hanging Height:

Slim 650S Specifications:

Total LEDs: 3,096

Model of LEDs: Samsung LH351H V2 Reds, LH351H Blue, LM301H White.

PPFD @10": 1,342

ppf/w :  3.15 umols/J

ppf: 1,750 umols

Grams Per Watt: up to 2.8

Yield: Up to 1,820 grams / 65 oz / up to 4.06 lbs

HID/HPS equivalency: 1300 watts DE HPS

Kelvin: 3500K Day Light White Base + Deep Red + Royal Blue + UV + IR

IP Rating: IP65 Waterproof

Total LEDs: 3,096

LEDs Per Watt: 4.75

White LEDs - Samsung LM301H 6 LEDs Per Watt (500 Watts)

Red LEDs: Samsung LH351H .72 LEDs per Watt (100 Watts)

Blue LEDs: Samsung LH351H .64 LEDs per Watt (50 Watts)

Actual Max Power Draw: 650 watts max

Amps:  5.5 Amps at 120v ( 2.8 Amps @ 240v)

Voltage : Internationally Used 110 volts - 277volts (240v cord sold seperately)

Lifetime: 25 Years

Warranty: 10 Years full warranty (Industry Best)

Release Date: October 2020

Shipping: Free Shipping in Canada and to 60+ countries

Light Fixture: 42" x 42" Vertical Farming Aluminum BAR Fixture - folds in half

Cables: 6 Foot attached power cord

Plug: USA, CANADA, EURO, Commercial, etc. (240v sold separately)

(We automatically ship the correct cord for your country)

Dimming: 3 Dimmer Knobs 5%-100%. 3-Way Spectrum Control

Spectrum Control: 3 Dimmer Knobs 5%-100%. 3-Way Spectrum Control

TouchScreen Master Controller: 2 ports, Fully Compatible. 3 Dimmer control

Fixture Dimensions: 42" x 42" x 4.5"

Fixture Weight: 40 lbs (Aluminum Fixture + Driver Case)

Shipping Weight: 50 lbs

Hanger: Comes with 4 adjustable rope ratchet hangers.

Recommended for: Grow Tents, Grow Rooms, Greenhouses & Indoor Cultivations.

*International Shipments may require Taxes & Duties. Contact us for a quote!

Sales@OpticLEDGrowLights..ca  -  Slim 650S Patent Pending.

(250)-880-5200 or inquire at Sales@OpticLEDGrowLights.ca

 *Compatible with the Optic LED Master Controller ($199.00)

Also, check out our Instagram page for more videos @OpticLEDGrowLights @OpticLEDGrowLights.ca

Videos:

StickyNuggy Unboxing VIdeo

Pictures:

Bloom Setting

Full Power

Slim 650S at 10% Dimmer Power

4x4 Grow Tent has 3" clearance all around the outside of the light.

Double Row LED Strip Boards with Optic Slim Tech (LM301H & LH351H)

Dual Red & Blue Bloom Enhancers

Slim 650S Turned Off - Hanging in our showroom
