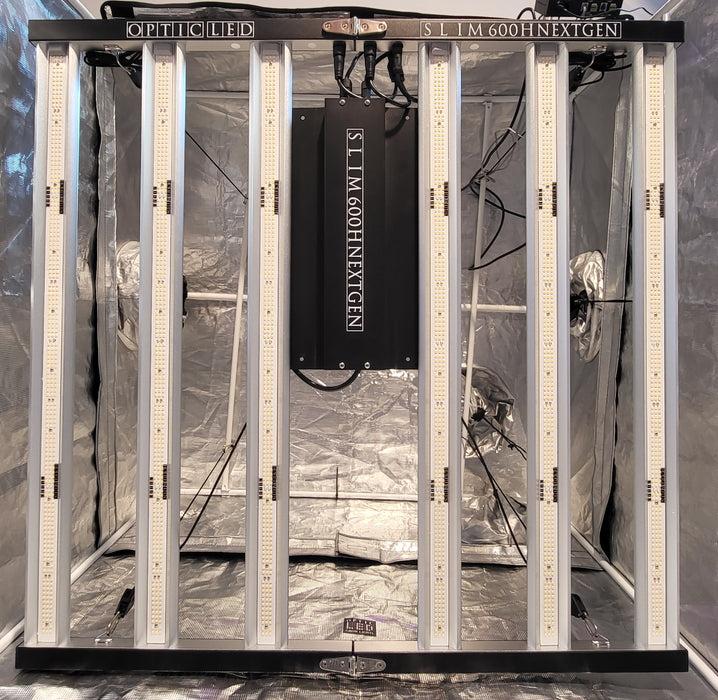

Slim 600H NextGen Dimmable LED Grow Light - 630watt - (uv-ir) (2/15/2023)
We are now accepting orders.
USA Orders: Ships between April 30th-May 5th
EU, UK, AU & CA: Ships within 2 business days
Japan Orders: Ships within 2 business days
Coverage Footprint:
Flower: Veg:
4' x 4' area (1.2m x 1.2m) 4' x 4' area (Up to 7' x 7' area)
Max: 5' x 5' area (1.5m x 1.5m)
(4' x 4' Grow Tent / 1.2m x 1.2m)
Hanging Height :
Flower: 10"-24"
Pro Tips: It's always best to set the light up higher and let the plants grow up into the light.
Recommended Dimmer Settings & Hanging Height:
Seedling: 36"+ / 25% Power
Vegetative: 48" + / 50% Power (or 24" @ 25% Power)
Flowering:
Wk1-3 - @24-30"" / 50% Power
Wk4-6 @18" - 24" / 75% Power
Wk7-8 @18" - 24" / 100% Power
Wk9-10 @12" - 18" / 100% Power
Slim 600H NextGen Components:
LEDs: 2,244 Total LEDs

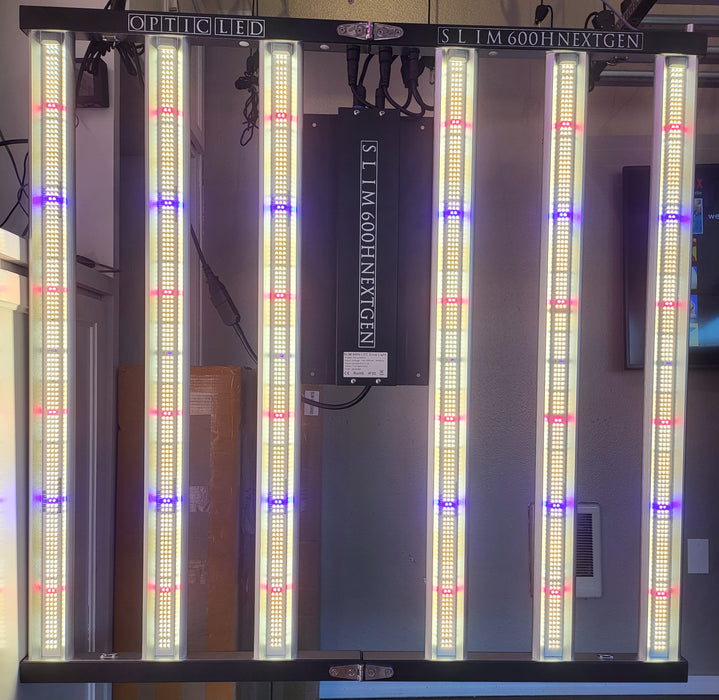

Full Spectrum White Light LEDs:
- NEW!! 2,160 Top Bin Samsung LM301H Series 3500K Mixed White LEDs - 3.14 Umols/J
Bloom Enhancers:
- 48 Samsung Horticulture LH351H V2 Deep Red LEDs 3.75 umols/J
- 24 Samsung Horticulture LH351H Royal Blue LEDs 2.8 umols/J
- 6 Samsung Hoticulture LH351H V2 infrared LEDs. (ir)
Optics: 120 Degree Primary Lens on all LEDs + Conformal Coating
(Secondary Optics is 120 Degree reflector built into the Heatsink
*optional clip on Lenses sold seperately - Required for Growers who use sprays
Driver: 0%-100% Sosen Industrial Grade Dimmable Driver
Dimmers: 1 Dimmer with 0%-100% Full Range Dimmability
Dimmer#1 (White + Red + Blue + UV + ir ) - 630 watts
Controller Tech: Fully Compatible - (*Touch Screen Controller is Sold Separately)
Dual Port RJ-11 Controller hookup - Daisy chain up to 200 lights
Thermal management: Passive Cooling from a Overbuilt extruded fin Heat sink (Fanless Technology - No Moving Parts)
*Coolest Operating Temp of any 6 BAR 630W fixture on Earth.
Slim 600H NextGen Spectrum:
PPFD Charts:
6" Hanging Height
12" Hanging Height
24" Hanging Height
Slim 600H NextGen Specifications:
LEDs: 2,244
HID/HPS equivalent: 1150 watt DE HPS
Kelvin: 3500K Day Light White
IP Rating: IP67
Grams Per Watt: up to 2.4
Yield: Up to 1440 grams / 51.42 oz / up to 3.2lbs
LEDs Per Watt: 3.66
PPFD @6" : 1,235
ppf/w : 2.82 umols/J
Actual Power Draw: 630 watts max
Amps: 5.5 Amps at 120v (2.6 Amps @ 240v)
Voltage : Internationally Used 110 volts -277v
Lifetime: 100,000 Hours+
Warranty: 7 Years Warranty -
Release Date: 4/30/2023
Shipping: Free Shipping To USA - International shipping calculated at checkout
Cables: 6 Foot attached power cord
Plug: USA, Japan, Canada, EU, UK, 240v Commercial, etc.
(We ship the correct cord for your country)

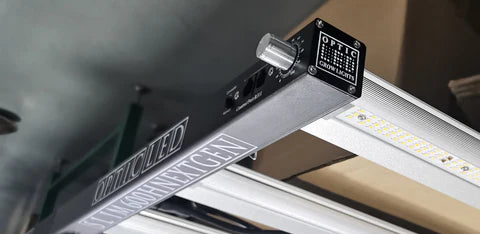

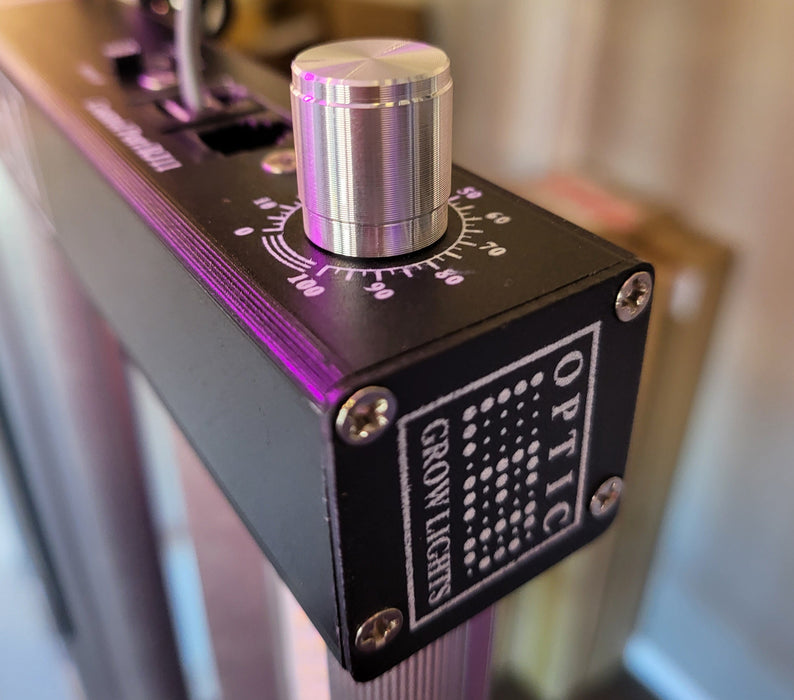

Dimming: Single Dimmer on right side: 0%-100% Dimming.
Master Controller: 2 Built in Controller Ports - Add the touch screen controller is optional *adds auto sunrise/sunset feature, Manual Dimming & multi light control.

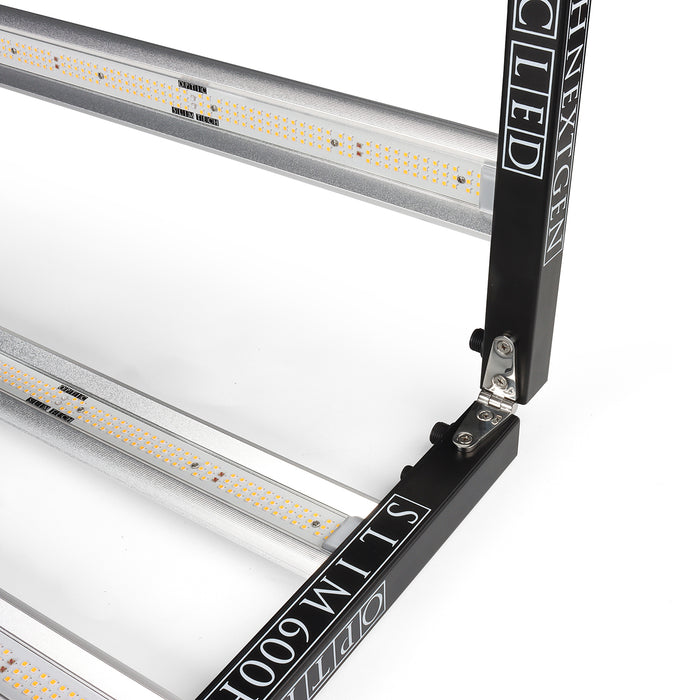

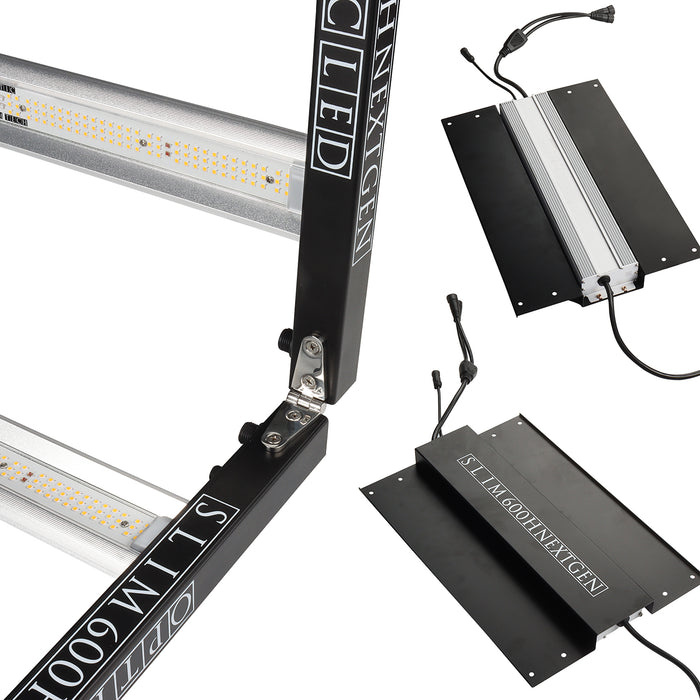

Fixture Dimensions: 41" x 42" x 2" - Folds in half
Fixture Weight: 30 lbs (With Driver top-mounted)
Shipping Weight: 36 lbs

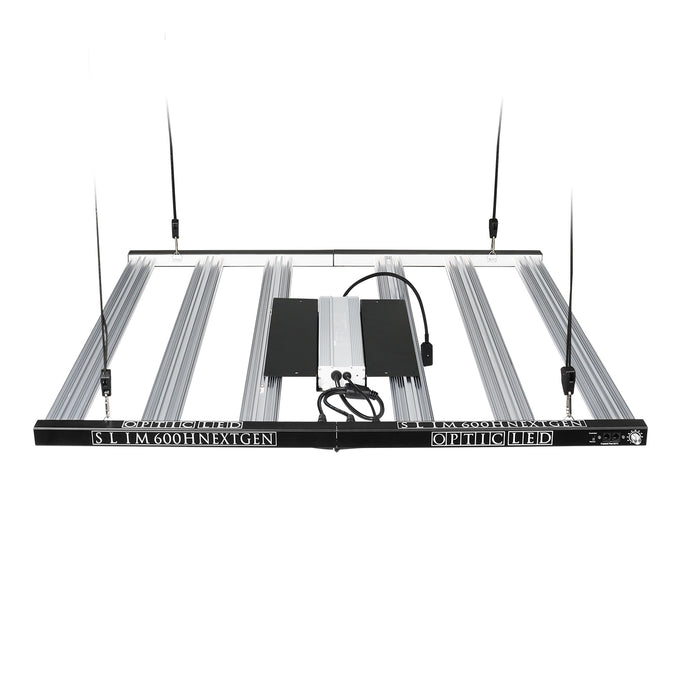

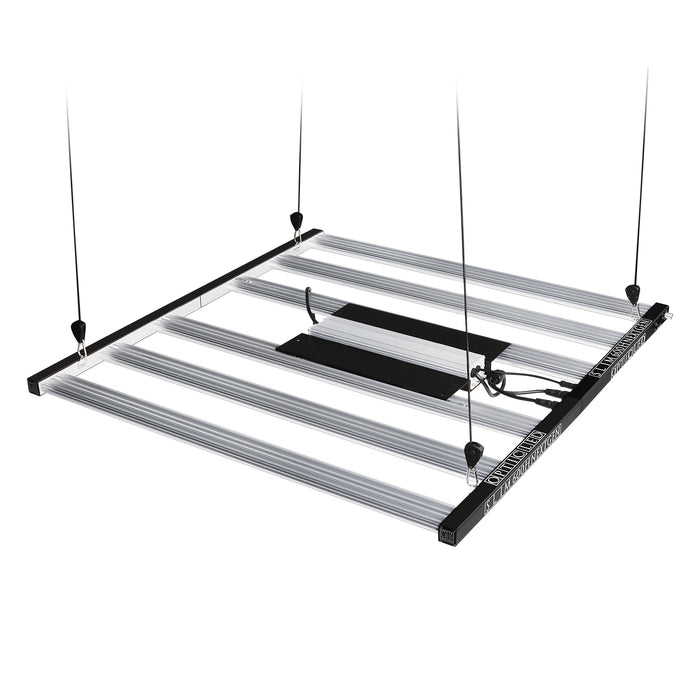

Hanger: Comes with 4 adjustable rope ratchet hangers.

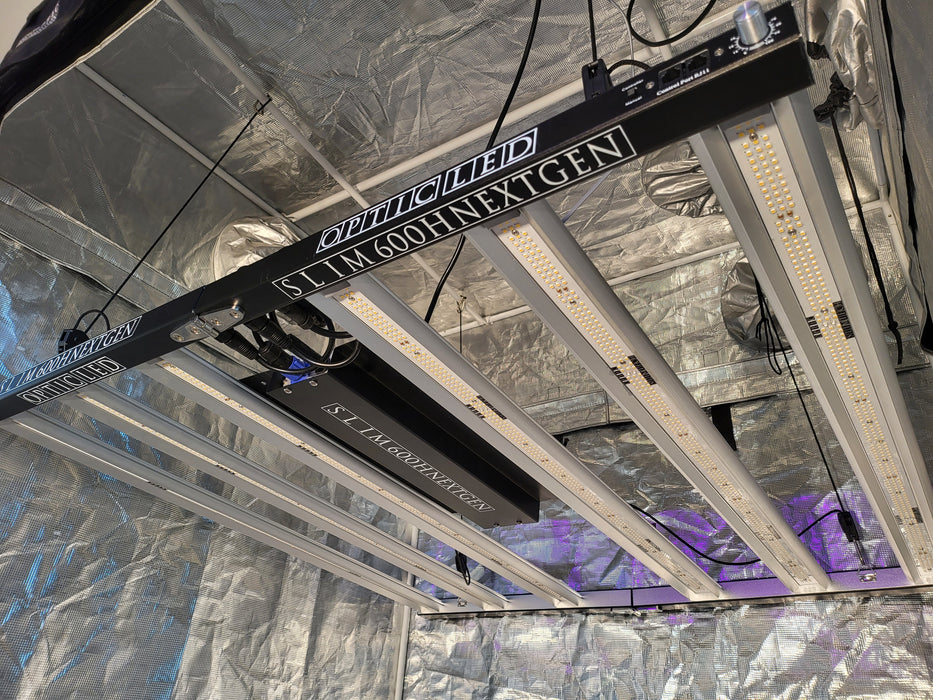

Recommended for: Grow Tents, Grow Rooms, Greenhouses & Indoor Cultivations.
*International Shipments may require Taxes & Duties. Contact us for a quote!
Sales@OpticLEDGrowLights..com - CommercialGrower@OpticLEDGrowLights.com
Slim 600H NEXTGEN Patent Pending.
