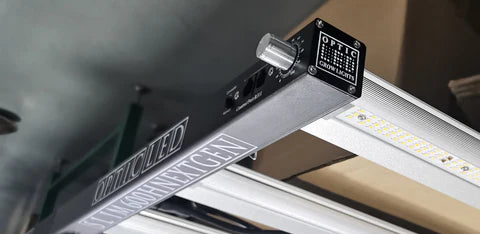

Slim 600H NextGen Dimmable LED Grow Light - 630watt - (uv-ir) (2/15/2023)

Save 17%
$1,199.00
$999.00

                                     We are now accepting orders.

                          USA Orders: Ships between April 30th-May 5th

                          EU, UK, AU & CA: Ships within 2 business days

                          Japan Orders: Ships within 2 business days





Coverage Footprint:

Flower:                                           Veg:

4' x 4' area (1.2m x 1.2m)                4' x 4' area (Up to 7' x 7' area)

Max: 5' x 5' area (1.5m x 1.5m)

         (4' x 4' Grow Tent / 1.2m x 1.2m)



Hanging Height :

Flower: 10"-24"

Pro Tips: It's always best to set the light up higher and let the plants grow up into the light.
Recommended Dimmer Settings & Hanging Height:
Seedling: 36"+    / 25% Power
Vegetative: 48" + / 50% Power (or 24" @ 25% Power)

Flowering:

Wk1-3 - @24-30""     / 50% Power
Wk4-6 @18" - 24"  / 75% Power
Wk7-8 @18" - 24"  / 100% Power
Wk9-10 @12" - 18" / 100% Power

Slim 600H NextGen Components:

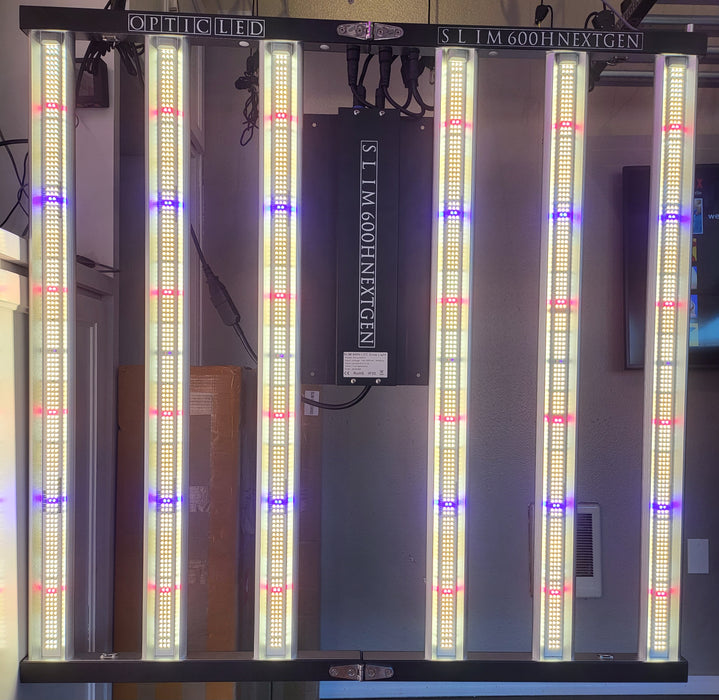

LEDs: 2,244 Total LEDs

Full Spectrum White Light LEDs:

- NEW!! 2,160 Top Bin Samsung LM301H Series 3500K Mixed White LEDs - 3.14 Umols/J

Bloom Enhancers:

- 48 Samsung Horticulture LH351H V2 Deep Red LEDs 3.75 umols/J

- 24 Samsung Horticulture LH351H Royal Blue LEDs 2.8 umols/J

- 6 Samsung Hoticulture LH351H V2 infrared LEDs. (ir)

- 6 LG Ultra Violet LEDs (uv)

Optics: 120 Degree Primary Lens on all LEDs + Conformal Coating

(Secondary Optics is 120 Degree reflector built into the Heatsink

*optional clip on Lenses sold seperately - Required for Growers who use sprays

Driver: 0%-100% Sosen Industrial Grade Dimmable Driver

Dimmers: 1 Dimmer with 0%-100% Full Range Dimmability

Dimmer#1 (White + Red + Blue + UV + ir ) - 630 watts

Controller Tech: Fully Compatible - (*Touch Screen Controller is Sold Separately)

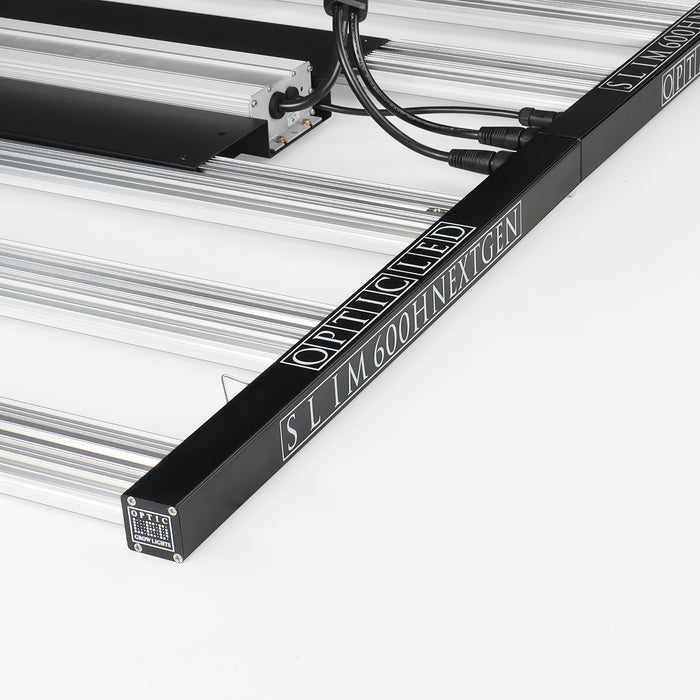

Dual Port RJ-11 Controller hookup  - Daisy chain up to 200 lights

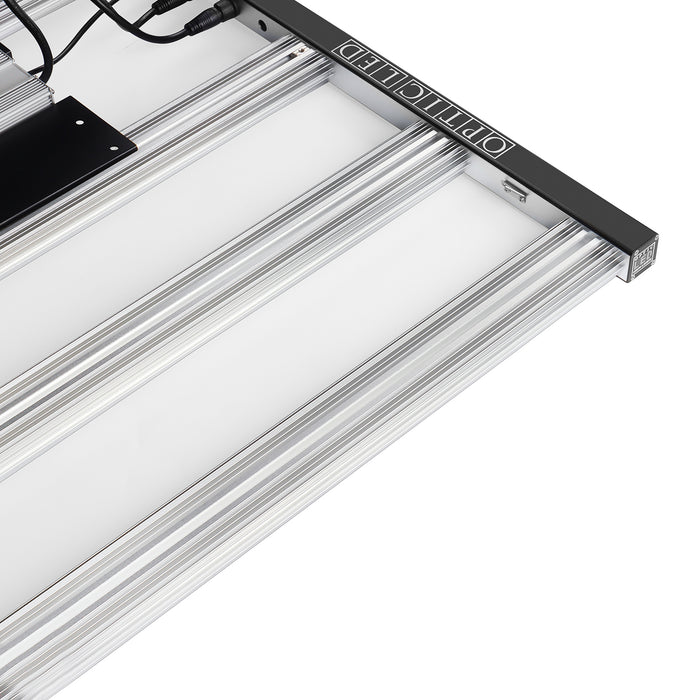

Thermal management: Passive Cooling from a Overbuilt extruded fin Heat sink (Fanless Technology - No Moving Parts)

*Coolest Operating Temp of any 6 BAR 630W fixture on Earth.

Slim 600H NextGen Spectrum:

PPFD Charts:

6" Hanging Height

12" Hanging Height

24" Hanging Height



Slim 600H NextGen Specifications:

LEDs: 2,244

HID/HPS equivalent: 1150 watt DE HPS

Kelvin: 3500K Day Light White

IP Rating: IP67

Grams Per Watt: up to 2.4

Yield: Up to 1440 grams / 51.42 oz / up to 3.2lbs

LEDs Per Watt: 3.66

PPFD @6" : 1,235

ppf/w : 2.82 umols/J

Actual Power Draw: 630 watts max

Amps: 5.5 Amps at 120v (2.6 Amps @ 240v)

Voltage : Internationally Used 110 volts -277v

Lifetime: 100,000 Hours+

Warranty: 7 Years Warranty -

Release Date: 4/30/2023

Shipping: Free Shipping To USA - International shipping calculated at checkout

Cables: 6 Foot attached power cord

Plug: USA, Japan, Canada, EU, UK, 240v Commercial, etc.

(We ship the correct cord for your country)

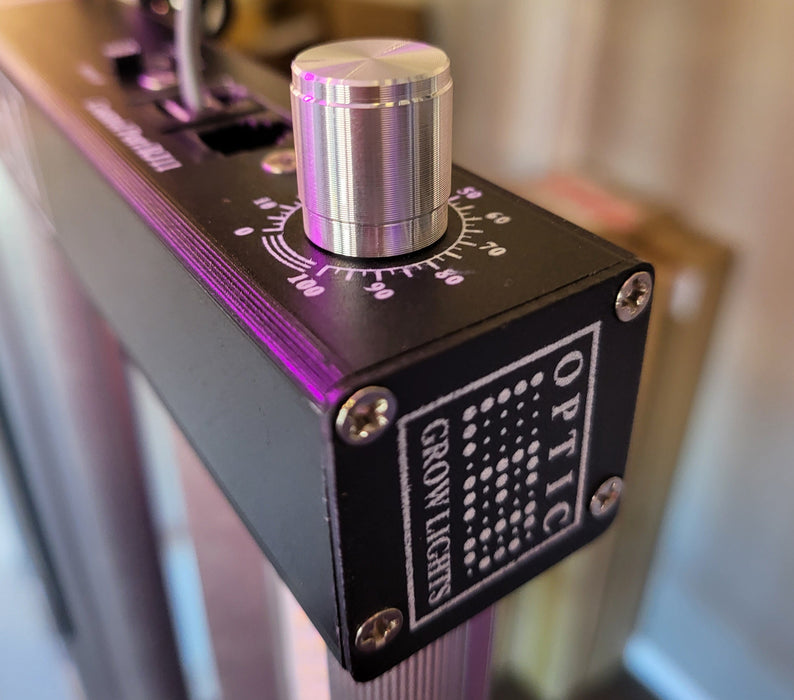

Dimming: Single Dimmer on right side: 0%-100% Dimming.

Master Controller: 2 Built in Controller Ports - Add the touch screen controller is optional *adds auto sunrise/sunset feature, Manual Dimming & multi light control.

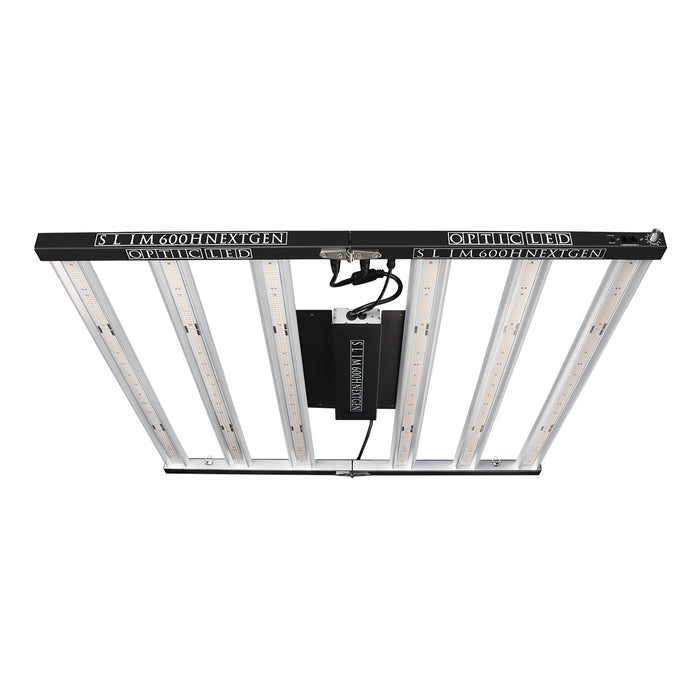

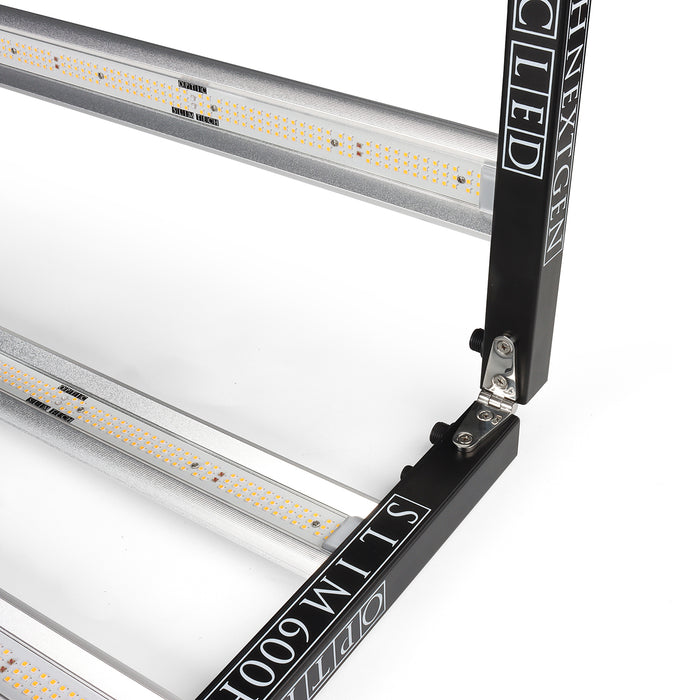

Fixture Dimensions: 41" x 42" x 2" - Folds in half

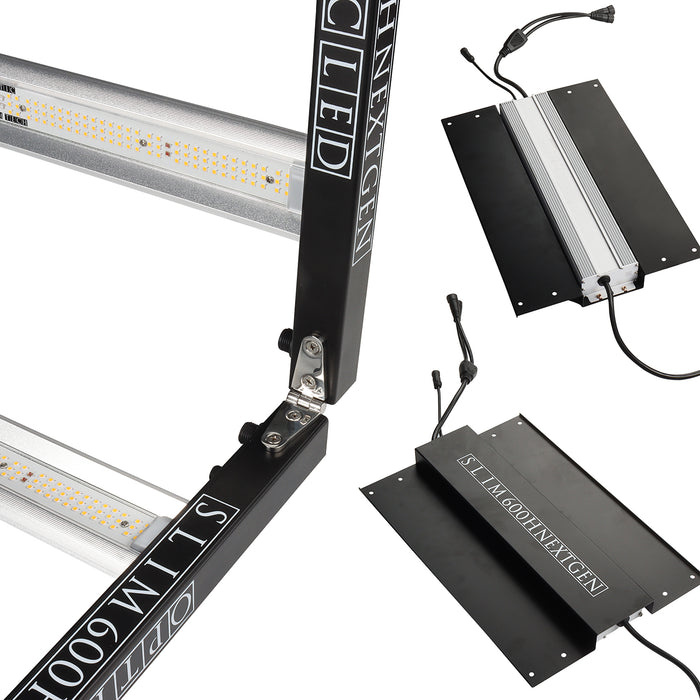

Fixture Weight: 30 lbs (With Driver top-mounted)

Shipping Weight: 36 lbs

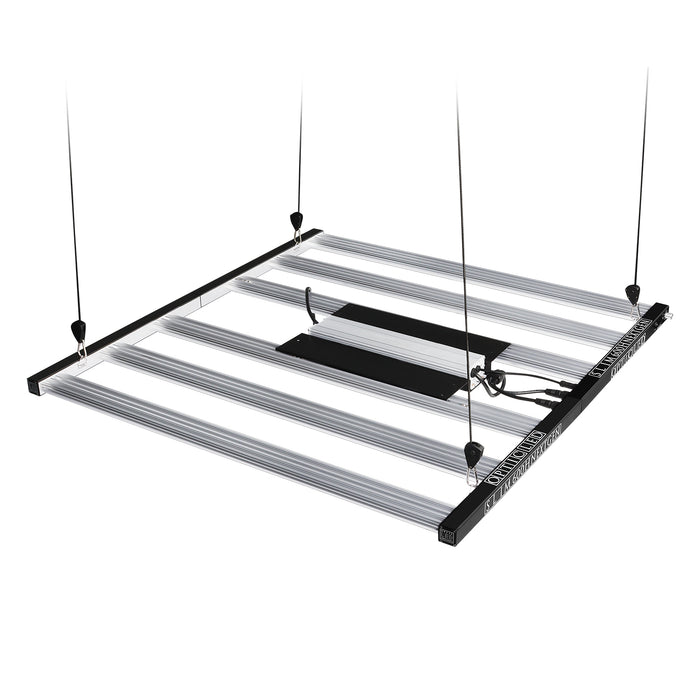

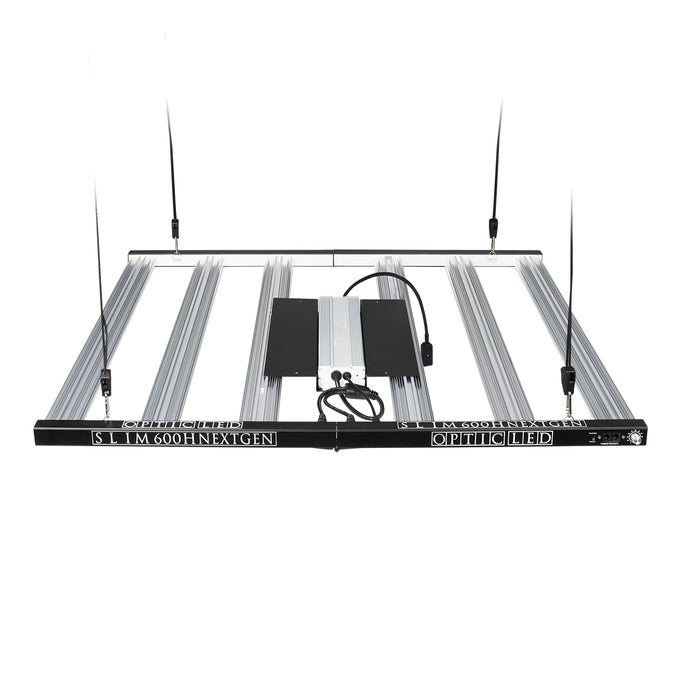

Hanger: Comes with 4 adjustable rope ratchet hangers.

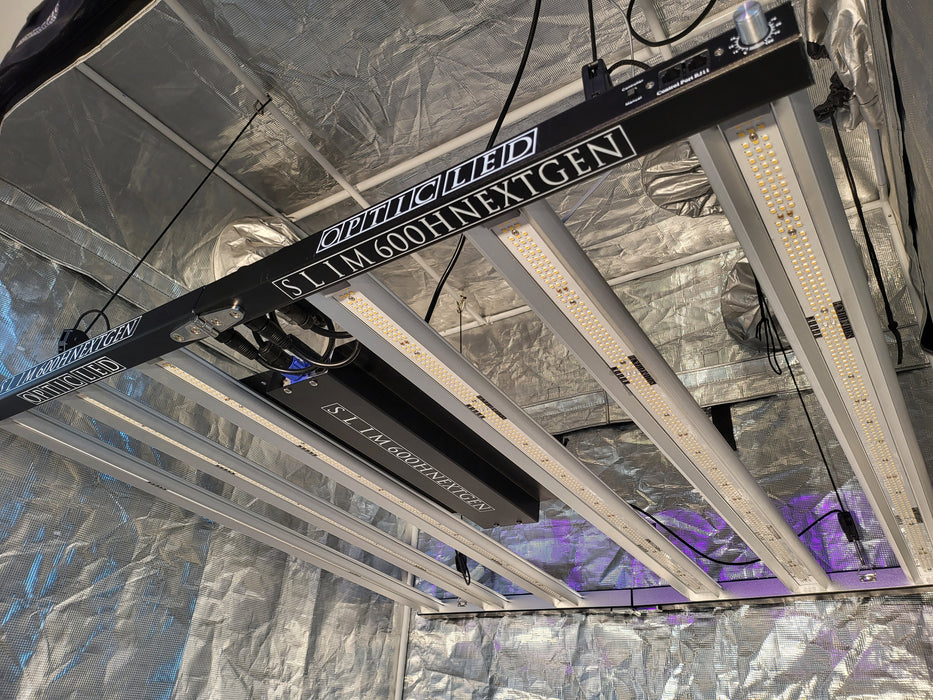

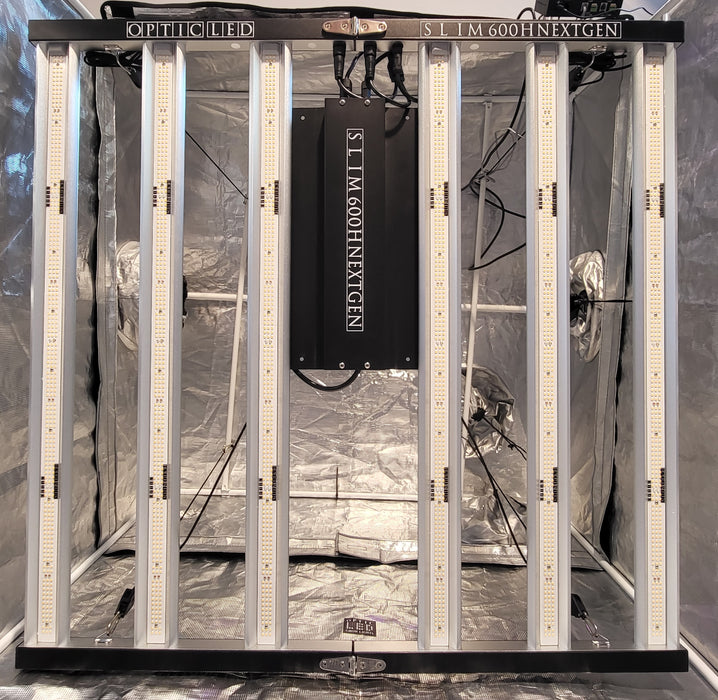

Recommended for: Grow Tents, Grow Rooms, Greenhouses & Indoor Cultivations.

*International Shipments may require Taxes & Duties. Contact us for a quote!

Sales@OpticLEDGrowLights..com - CommercialGrower@OpticLEDGrowLights.com

Slim 600H NEXTGEN Patent Pending.
